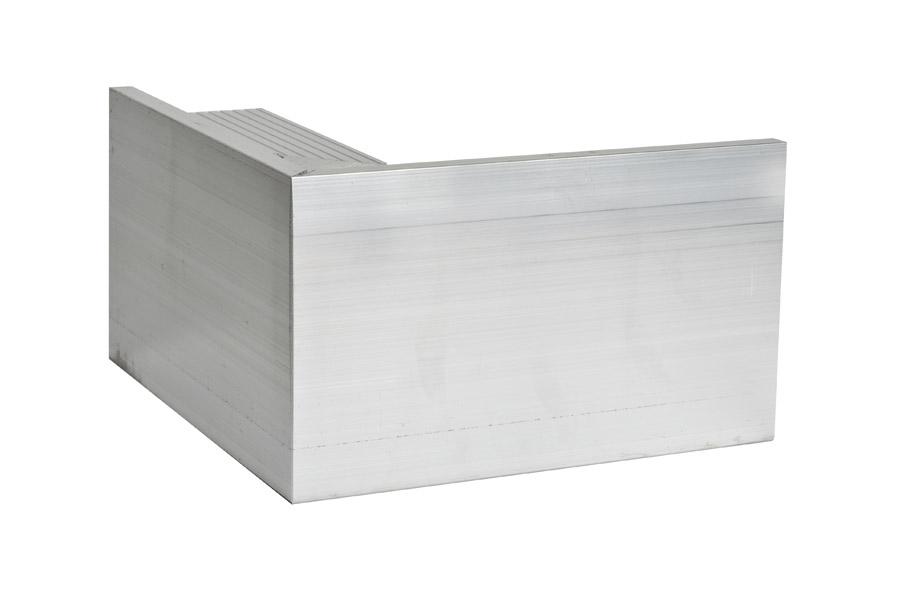

Aluminium Trim External Angle is 200mm x 200mm and made from aluminium. It has been created to use on both felt and mastic asphalt roofing, leaving a durable and long-lasting finish. The Nutrim trim will reduce the dangers of water penetration, voids, and capillary action when installed correctly.
The trim can be fixed with Cadmium or Galvanised nails or screws, with a centre of no more than 300mm (12”), with each of the ends firmly secured. Per length, a minimum of eight fixings is advised, with a gap of 3mm left between each length for allowance of expansion.
Features & Benefits:
- Used for both mastic asphalt and felt roofing
- Removes the threats associated with water penetration and voids
- Durable and strong
- Easy to install
- Allow material to be bonded to trim directly

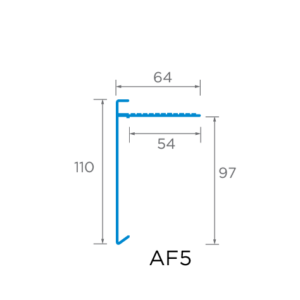

- Length:200mm x 200mm
- Face: 110mm
- Leg: 64mm
- Material: Aluminium
The first layer is dressed over the kerb, and the trim is fixed into position to install with built-up felt roofing. The top layer of felt is then laid similarly, and the top edge is turned into the hood, eliminating the external edge of the top layer of felt from lifting.
Please note:
- Priming of the fixing leg is recommended.
